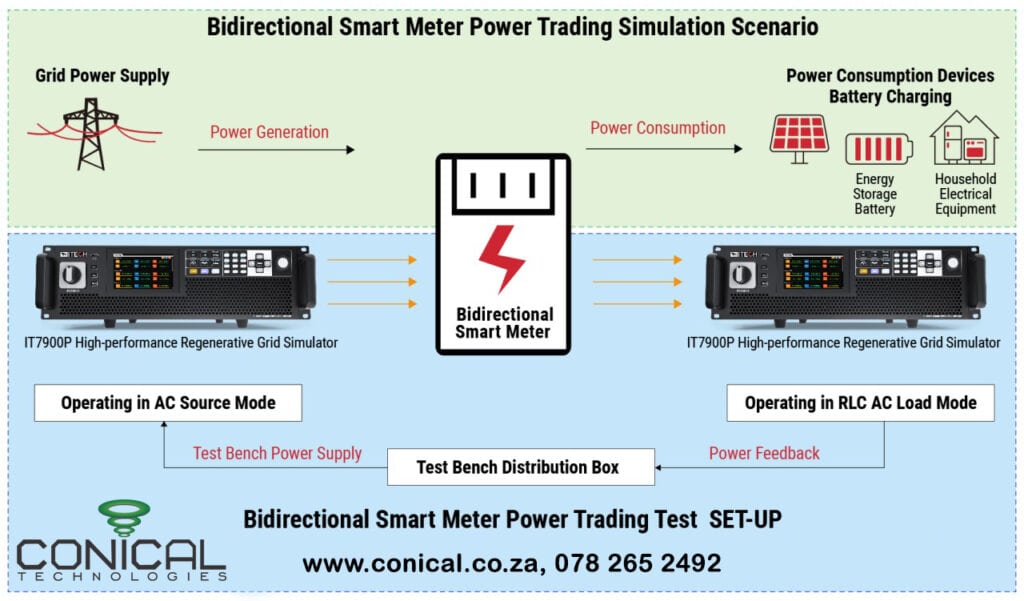

Testing Smart Electricity Meters with the ITECH IT7900P Regenerative Grid Simulator
As the global transition to smarter, more efficient power distribution accelerates, smart electricity meters have become a cornerstone of modern grids. Utilities, OEMs, and test laboratories are under pressure to ensure these meters are accurate, reliable, and compliant with international standards. Achieving this requires precise and flexible test systems—an area where the ITECH IT7900P series regenerative grid simulator excels.
Why Smart Meter Testing Matters
Smart electricity meters do more than measure consumption. They provide two-way communication between consumers and utilities, enable demand-side management, support variable tariffs, and play a key role in distributed energy integration.
Given their central role, testing must cover:
- Accuracy of voltage, current, power, and energy measurement.
- Response to grid disturbances such as voltage sags, swells, harmonics, and frequency deviations.
- Compliance with standards like IEC 62052, IEC 62053, ANSI C12, and EN 50470.
- Reliability under long-term operation across varying grid conditions.
The IT7900P as a Grid Simulator for Meter Testing
The IT7900P regenerative grid simulator is specifically designed for high-precision AC power testing, making it ideal for smart meter verification. Key features include:
- Regenerative AC Source: Delivers programmable AC voltage and frequency while returning absorbed energy back to the grid, reducing power costs and heat dissipation in long-duration tests.
- Wide Power Range: From 6 kVA to 960 kVA, allowing testing of individual meters up to entire meter banks.
- Flexible Waveform Generation: Simulates sags, swells, flicker, harmonics, and other disturbances to evaluate meter performance under real-world grid conditions.
- High Accuracy Measurement: Built-in power analyzer ensures precise measurement of electrical parameters for direct comparison with the meter under test.
- Programmable Test Sequences: Automates compliance and performance testing with repeatable, standards-based profiles.
Typical Smart Meter Test Applications
- Accuracy Verification
By programming stable sinusoidal voltages and currents, the IT7900P provides reference conditions against which a meter’s measurement accuracy can be validated. - Disturbance Testing
The simulator can replicate low-frequency harmonics, voltage dips, or frequency fluctuations to ensure that meters maintain accuracy and remain operational under non-ideal grid conditions. - Endurance and Lifetime Testing
Thanks to its regenerative design, the IT7900P enables continuous long-term testing without excessive energy consumption, significantly reducing operating costs. - Compliance Testing
Test profiles aligned to IEC or ANSI standards can be programmed into the unit, ensuring fast and repeatable verification for certification or production QA.
Benefits to Test Labs and Utilities
- Energy Savings: Up to 90% of absorbed energy is fed back to the grid.
- Reduced Heat Load: Less air conditioning and infrastructure overhead compared to traditional AC sources.
- Scalable Test Environment: From single-unit R&D setups to large-volume production line testing.
- Improved Test Confidence: Integrated precision measurement capabilities minimize the need for external analyzers.
Conclusion
Smart electricity meters are at the heart of the digital grid revolution, and their accuracy and reliability are non-negotiable. The iTECH IT7900P series regenerative grid simulator provides a powerful, efficient, and standards-compliant solution for testing these devices—whether for R&D, type approval, or production verification.
By adopting regenerative testing technology, manufacturers and utilities not only ensure meter compliance but also reduce testing costs and environmental impact, aligning with the very goals that smart grids themselves are designed to achieve.
